Product Summary
| Product No. |
84953-8 |
|---|---|
| RoHS Information |
84953-8 Statement of Compliance RoHS 2 Statement |
| Catalog Drawings |
Right Angle Horizontal 8-Position |
| Featured Product |
TE Connectivity - FPC Connectors |
| 3D Model |
84953-8.pdf |
| Standard Package | 1 |
| Category | Connectors, Interconnects |
| Family | FFC, FPC (Flat Flexible) Connectors - Board Mount |
| Series | AMP |
| Packaging | Cut Tape (CT) |
| Connector Type | Top Contacts |
| Number of Positions | 8 |
| Pitch | 0.039" (1.00mm) |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.101" (2.56mm) |
| Mounting Type | Surface Mount, Right Angle |
| Cable End Type | Straight |
| Termination | Solder |
| Locking Feature | Slide Lock |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Contact Finish | Tin |
| Contact Finish Thickness | 78.7μin (2.00μm) |
| Operating Temperature | -40°C ~ 85°C |
| Current Rating | 1A |
| Voltage Rating | 200V |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

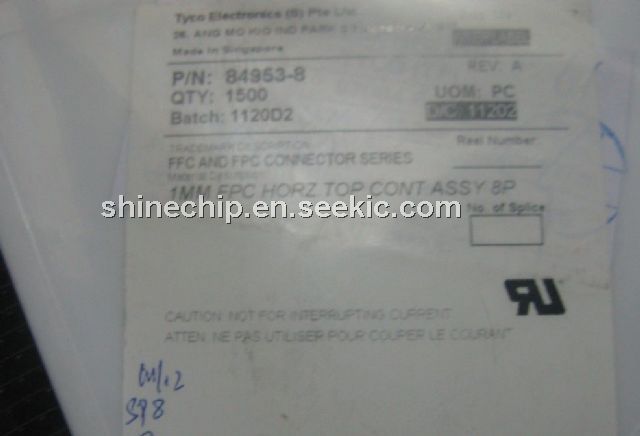

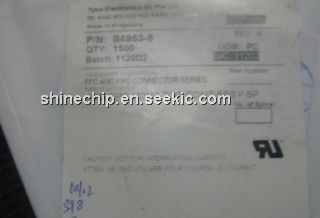

 84953-8 |
TE Connectivity / AMP |
FFC / FPC Connectors 1MM CONT ASSY 8P HORIZONTAL TOP FPC |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
8495 |
Heyco |
Cable Mounting & Accessories HFC 3/4 S-TWIST BLK CONDUIT FITTING |
Data Sheet |
|
|
||||||||||||
 |
84952-5 |
TE Connectivity / AMP |
FFC / FPC Connectors ZIF BTM 1X05P SMT |
Data Sheet |
|
|
||||||||||||
|
84952-8 |
TE Connectivity / AMP |
FFC / FPC Connectors 1MM CONT ASS 8P R/A HORIZ BOTTOM FPC |
Data Sheet |
|
|
||||||||||||
|
84952-9 |
TE Connectivity / AMP |
FFC / FPC Connectors 1MM FPC HORZ .BTTM CONT.ASS.9P |
Data Sheet |
|
|
||||||||||||
|
84953-5 |
TE Connectivity / AMP |
FFC / FPC Connectors 1MM FPC HORZ.TOP CONT.ASSY 5P |
Data Sheet |
Negotiable |
|
||||||||||||
|
84953-6 |
TE Connectivity / AMP |
FFC / FPC Connectors 1MM CONT ASSY 6P HORIZONTAL TOP FPC |
Data Sheet |
|
|
||||||||||||
