Product Summary
| Datasheets |
J0 Series |
|---|---|

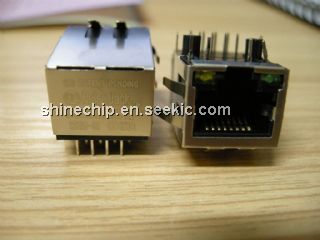

| Product Photos |
J0026D21B(NL) |
| Catalog Drawings |
PULSEJACK Right Angle 1x1 |
| Standard Package | 25 |
| Category | Connectors, Interconnects |
| Family | Modular Connectors - Jacks With Magnetics |
| Series | PULSEJACK? J0 |
| Packaging | Bulk |
| Connector Type | RJ45 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Applications | 10/100 Base-TX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Height Above Board | 0.545" (13.84mm) |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 5 |
| Shielding | Shielded, EMI Finger |
| Features | Board Guide |
| Tab Direction | Down |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 15μin (0.38μm) |
| Shield Material | Brass |
| Housing Material | Thermoplastic |
| Operating Temperature | 0°C ~ 70°C |
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 J0026D21BNL |
Pulse |
Ethernet & Telecom Connectors 1X1 TAB DOWN W/LEDS |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
J0024D21 |
Pulse |
Ethernet & Telecom Connectors FILTERED CONN |
Data Sheet |
Negotiable |
|
||||||||||||
 |
J0024D21B |
Pulse |
Ethernet & Telecom Connectors 1X1 TAB DOWN W/LEDS 10/100 |
Data Sheet |
Negotiable |
|
||||||||||||
|
J0024D21BNL |
Pulse |
Ethernet & Telecom Connectors 1X1 TAB DOWN W/LEDS |
Data Sheet |
Negotiable |
|
||||||||||||
|
J0024D21NL |
Pulse |
Ethernet & Telecom Connectors FILTERED CONN |
Data Sheet |
Negotiable |
|
||||||||||||
 |
J0026D01 |
Pulse |
Ethernet & Telecom Connectors 1X1 TAB DOWN 10/100 |
Data Sheet |
|
|
||||||||||||
|
J0026D01B |
Pulse |
Ethernet & Telecom Connectors FILTERED CONN |
Data Sheet |
Negotiable |
|
||||||||||||
