Product Summary

Product Nos CC2520RHDR
Product Training Modules RF: RFID Technology and Applications
Manufacturer Product Page CC2520RHDR Specifications
Standard Package   3,000
Category RF/IF and RFID
Family RF Transceivers
Series -
Packaging   Tape & Reel (TR)
Frequency 2.4GHz
Data Rate (Max) 250kbps
Modulation or Protocol 802.15.4
Applications Home/Building Automation, Industrial Control, ZigBee?
Power - Output -9dBm ~ 8dBm
Sensitivity -98dBm
Voltage - Supply 1.8 V ~ 3.8 V
Current - Receiving 22.3mA
Current - Transmitting 25.8mA
Data Interface PCB, Surface Mount
Memory Size 768byte RAM
Antenna Connector PCB, Surface Mount
Operating Temperature -40°C ~ 125°C
Package / Case 28-VFQFN Exposed Pad
For Use With
CC2520DK-ND - CC2520DK

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

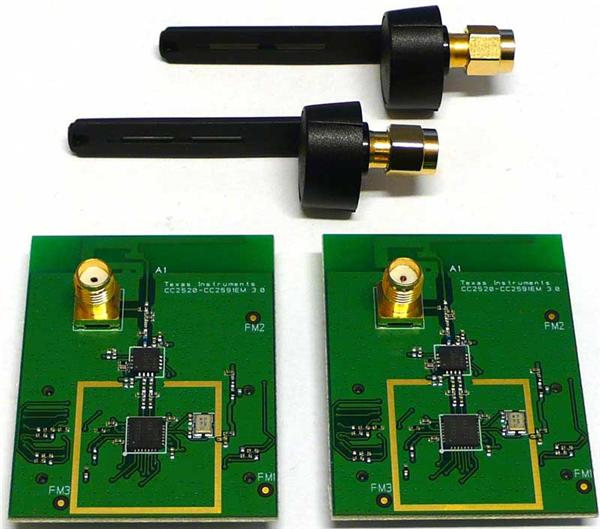

CC2520-CC2591EMK
CC2520-CC2591EMK

Texas Instruments

Zigbee / 802.15.4 Development Tools CC2520-CC2591EMK Eval Mod

Data Sheet

0-1: $67.01

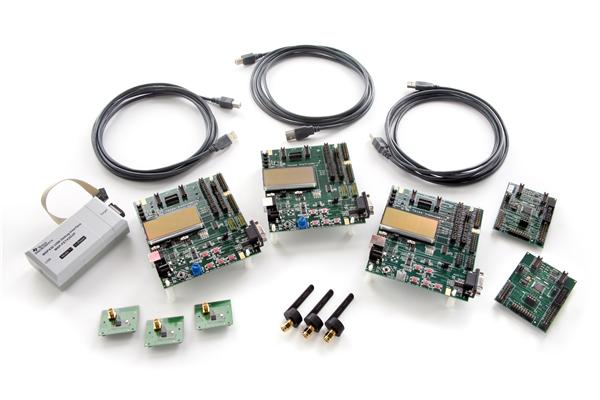

CC2520DK
CC2520DK

Texas Instruments

Zigbee / 802.15.4 Development Tools CC2520 Dev Kit

Data Sheet

0-1: $443.45
CC2520EMK
CC2520EMK

Texas Instruments

Zigbee / 802.15.4 Development Tools CC2520 Eval Mod Kit

Data Sheet

0-1: $67.01
CC2520FC-0.10-1%
CC2520FC-0.10-1%

Caddock

Current Sense Resistors - SMD 0.10 ohm 1%

Data Sheet

0-2: $2.03
2-10: $1.82
10-26: $1.62
26-50: $1.45
CC2520FC-0.25-1%
CC2520FC-0.25-1%

Caddock

Current Sense Resistors - SMD

Data Sheet

0-50: $1.38
CC2520FC-1.5-1%
CC2520FC-1.5-1%


RES 1.50 OHM 1.5W 1% 2512

Data Sheet

0-100: $1.45
CC2520FC-2.00-1%
CC2520FC-2.00-1%

Caddock

Current Sense Resistors - SMD

Data Sheet

0-50: $2.16

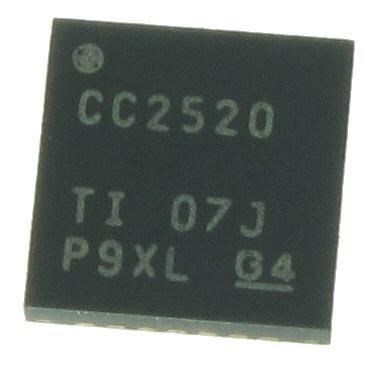

CC2520RHDR
CC2520RHDR

Texas Instruments

Zigbee 2nd Gen 2.4 GHz Zig Bee transceiver

Data Sheet

0-2350: $1.38
2350-3000: $1.35
