Product Summary
The CD40106BCN is a monolithic complementary MOS (CMOS) which is integrated circuit constructed with N and P-channel enhancement transistors.
Parametrics
Absolute maximum ratings: (1)DC Supply Voltage (VDD):-0.5V to +18VDC; (2)Input Voltage (VIN):-0.5V to VDD+0.5VDC; (3)Storage Temperature Range (TS):-65℃ to +150℃; (4)Power Dissipation (PD):Dual-In-Line:700mW,Small Outline:500mW; (5)Lead Temperature (TL)(Soldering, 10 seconds):260℃.
Features
Features: (1)Wide supply voltage range: 3V to 15V; (2)High noise immunity: 0.7 VDD (typ.); (3)Low power TTL compatibility:Fan out of 2 driving 74L or 1 driving 74LS; (4)Hysteresis: 0.4 VDD (typ.),0.2 VDD guaranteed; (5)Equivalent to MM74C14.

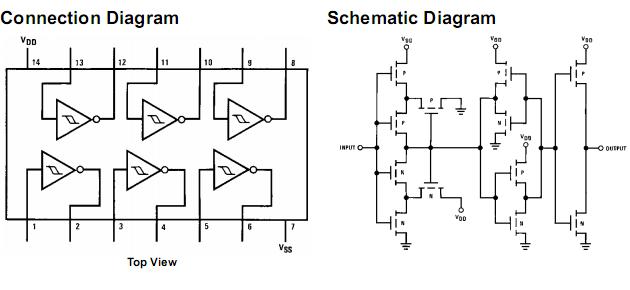

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD40106BCN |
Fairchild Semiconductor |
Inverters Hex Schmitt Trigger |
Data Sheet |
Negotiable |
|
||||
|
CD40106BCN_Q |
Fairchild Semiconductor |
Inverters Hex Schmitt Trigger |
Data Sheet |
Negotiable |
|
||||
