LM2576T-5.0

3Amp step-down voltage regulator, 45V, 100 pF, 1.5 kΩ, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.17~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.17~0.50

PartNumber:: LM2576T-5.0

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-19

From Other Seller

Part Number:LM2576T-5.0
US $0.17 - 0.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

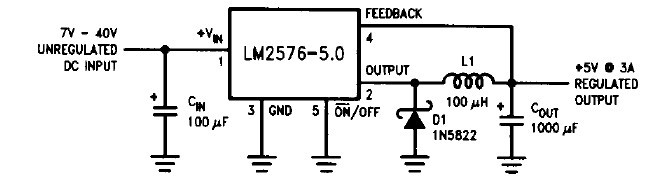

The LM2576T-5.0 is a 3Amp step-down voltage regulator. It is a monolithic integrated circuit that provides all the active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation. The device features a 5V out-put capable of driving a 3A load with excellent line and load regulation. The applications of the LM2576T-5.0 include: (1)Simple high-efficiency step-down (buck) regulator; (2)Efficient pre-regulator for linear regulators; (3)On-card switching regulators; (4)Positive to Negative converter (Inverting, Buck-Boost); (5)Isolated Flyback Converter using minimum number of external components; (6)Negative Boost Converter.

Parametrics

LM2576T-5.0 absolute maximum ratings: (1)Maximum Supply Voltage: 45V; (2)ON/OFF Pin Input Voltage: -0.3V ≤ V ≤ +40V; (3)Output Voltage to Ground (Steady State): -1V; (4)Storage Temperature Range: -65℃ to + 150℃; (5)Minimum ESD Rating (C = 100 pF, R = 1.5 kΩ): 2KV; (6)Lead Temperature (Soldering, 10 Seconds): 260℃; (7)Maximum Junction Temperature: 150℃.

Features

LM2576T-5.0 features: (1)5V output, ±3% max over line and load conditions; (2)Guaranteed 3A output current; (3)Wide input voltage range, 7V to 40V; (4)Requires only 4 external components; (5)52 kHz fixed frequency internal oscillator; (6)Low power standby mode, IQ typically <200 jxA; (7)80% Efficiency; (8)Uses readily available standard inductors; (9)Thermal shutdown and current limit protection; (10)100% electrical thermal limit bum-in.
