Product Summary

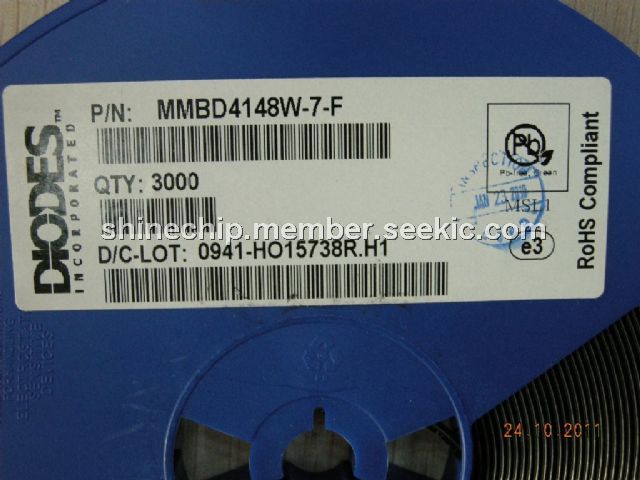

The MMBD4148W-7-F is a surface mount fast switching diode.

Parametrics

MMBD4148W-7-F absolute maximum ratings: (1)Non-Repetitive Peak Reverse Voltage, VRM: 100V; (2)Peak Repetitive Reverse Voltage, VRRM: 75V; (3)Working Peak Reverse Voltage, VRWM: 75V; (4)DC Blocking Voltage, VR: 75V; (5)RMS Reverse Voltage, VR(RMS): 53V; (6)Forward Continuous Current, IFM: 300mA; (7)Average Rectified Output Current, IO: 150mA; (8)Non-Repetitive Peak Forward Surge Current, IFSM: 2.0A at t = 1.0μs; 1.0A at t = 1.0s.

Features

MMBD4148W-7-F features: (1)Fast Switching Speed; (2)Ultra-Small Surface Mount Package; (3)For General Purpose Switching Applications; (4)High Conductance; (5)Lead, Halogen and Antimony Free, RoHS Compliant; (6)Green Device (Notes 3, 4 and 5); (7)Qualified to AEC-Q101 Standards for High Reliability.

Diagrams

MMBD4148W-7-F internal schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MMBD4148W-7-F
MMBD4148W-7-F
Diodes Inc.
Diodes (General Purpose, Power, Switching) 75V 200mW
Data Sheet
0-1: $0.30
1-10: $0.20
10-100: $0.07
100-500: $0.05
