Product Summary

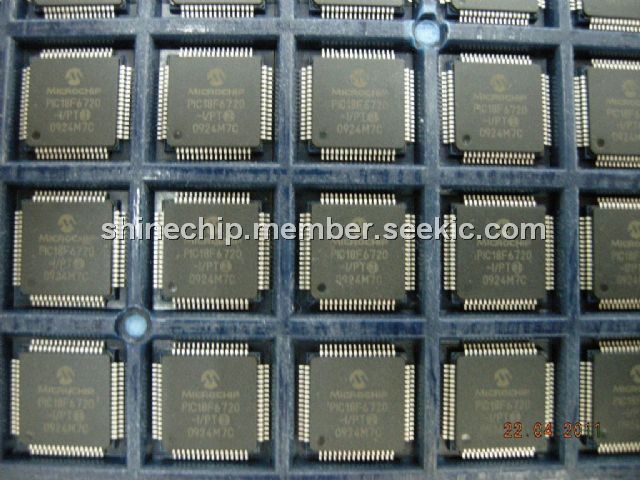

The PIC18F6720-I/PT is a 1 Mbit Enhanced FLASH Microcontroller with A/D. It provides an enhanced range of program memory options and versatile analog features that make it ideal for complex, high performance applications.
Parametrics
Absolute maximum ratings: (1)Ambient temperature under bias:-55℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR, and RA4):-0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS:-0.3V to +5.5V; (5)Voltage on MCLR with respect to VSS:0V to +13.25V; (6)Voltage on RA4 with respect to Vss:0V to +12.0V; (7)Total power dissipation:1.0W; (8)Maximum current out of VSS pin:300 mA; (9)Maximum current into VDD pin:250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD):±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD):±20 mA; (12)Maximum output current sunk by any I/O pin:25 mA; (13)Maximum output current sourced by any I/O pin:25 mA; (14)Maximum current sunk by all ports:200mA; (15)Maximum current sourced by all ports:200 mA.
Features
Features: (1)16-bit wide instructions, 8-bit wide data path; (2)Priority levels for interrupts ; (3)31-level, software accessible hardware stack; (4)8 x 8 Single Cycle Hardware Multiplier; (5)10-bit, up to 16-channel Analog-to-Digital Converter (A/D): Conversion available during SLEEP; (6)Programmable 16-level Low Voltage Detection (LVD) module:Supports interrupt on Low Voltage Detection; (7)Programmable Brown-out Reset (PBOR); (8)Dual analog comparators:Programmable input/output configuration.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PIC18F6720-I/PT |
Microchip Technology |
8-bit Microcontrollers (MCU) 128KB 3840 RAM 52I/O |
Data Sheet |
|
|
|||||||||||||
PIC18F6720-I/PTC01 |
Microchip Technology |
IC PIC MCU FLASH 65KX16 64TQFP |
Data Sheet |
Negotiable |
|
