Product Summary
The TB62802FG is a clock distribution driver for CCD linear image sensors. The IC can functionally drive the CCD input capacitance. It also supports inverted outputs, eliminating the need for crosspoint control. The IC contains a 1-to-4 clock distribution driver and 4-bit buffer.
Parametrics
Absolute maximum ratings: (1)Power supply voltage: -0.5 to 7.0 V; (2)Input voltage VIN: -1.2 to VCC + 0.5 V; (3)Output voltage: -0.5 to VCC V; (4)Input clamp diode current (VIN < 0): -50.0 mA; (5)Output clamp diode current (VO < 0): -50.0 mA; (6)Output current excluding other than outputs: -16.0 mA at High level, +16.0 mA at Low level; (7)output current: -150 mA at High level, 150 mA at Low level; (8)Storage temperature: -40 to 150 ℃; (9)Junction temperature: 150 ℃; (10)Thermal resistance Chip to ambient air: 83 ℃/W.
Features
Features: (1)High drivability: Guaranteed driving 250 pF load capacitance; (2)@fclock = 25 MHz (4-bit distribution driver); (3)Operating temperature range: Ta = 0℃ to 60℃.

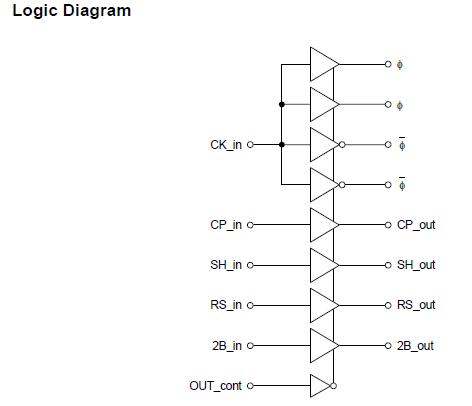

Diagrams
