Product Summary

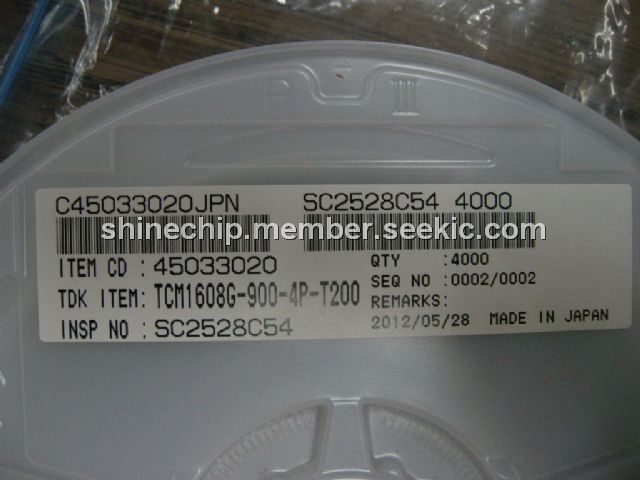

The TCM1608G-900-4P-T200 is a Common Mode Filter(SMD) For High-speed Differential Signal Line.

Parametrics

TCM1608G-900-4P-T200 absolute maximum ratings: (1)Common mode impedance [100MHz] : 90 Ω ±20%; (2)DC resistance [1 line] : 1.50 Ω ±30%; (3)Rated current Idc: 0.10 A; (4)Rated voltage Edc: 5 V; (5)Insulation resistance: 10 MΩ; (6)Operating temperature range: –25℃ to +85℃.

Features

TCM1608G-900-4P-T200 features: (1)dual-circuit modularized common mode filter array; (2)in the smallest class in the industry; (3)providing wide bandwidth (cutoff frequency: 3GHz) for differential mode; (4)almost no effect for highspeed differential signals; (5)suppress the radiated emission; (6)no lead and supports lead-free soldering.

Diagrams

TCM1608G-900-4P-T200 package dimensions
