Product Summary

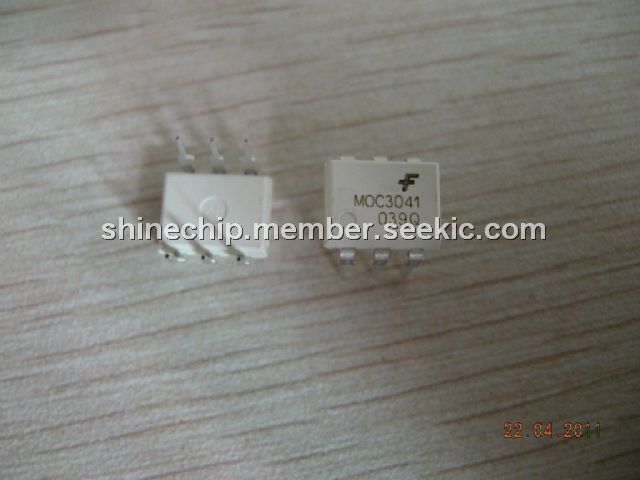

The MOC3041 device consists of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. It is designed for use with a triac in the interface of logic systems to equipment powered from 115 VAC lines, such as teletypewriters, CRTs, solid-state relays, industrial controls, printers, motors, solenoids and consumer appliances, etc.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: -40 to +150 ℃; (2)Operating Temperature: -40 to +85 ℃; (3)Lead Solder Temperature: 260 for 10 sec ℃; (4)Junction Temperature Range: -40 to +100 ℃; (5)Isolation Surge Voltage (peak AC voltage, 60Hz, 1 sec duration): 7500 Vac(pk); (6)Total Device Power Dissipation @ 25℃: 250 mW; (7)Derate above 25℃: 2.94 mW/℃.
Features
Features: (1)Simplifies logic control of 115 VAC power; (2)Zero voltage crossing; (3)dv/dt of 2000 V/μs typical, 1000 V/μs guaranteed; (4)VDE recognized (File # 94766)-ordering option V.

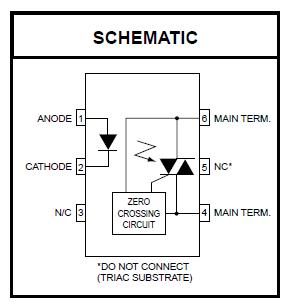

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MOC3041 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
MOC3041FM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin400V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
|||||||||||||
MOC3041FR2M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin400V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
|||||||||||||
MOC3041FR2VM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin400V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
|||||||||||||
MOC3041FVM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin400V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
|||||||||||||
MOC3041M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers DIP-6 ZERO TRIAC |
Data Sheet |
|
|
|||||||||||||
MOC3041-M |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
MOC3041M_Q |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers DIP-6 ZERO TRIAC |
Data Sheet |
Negotiable |
|
