Product Summary

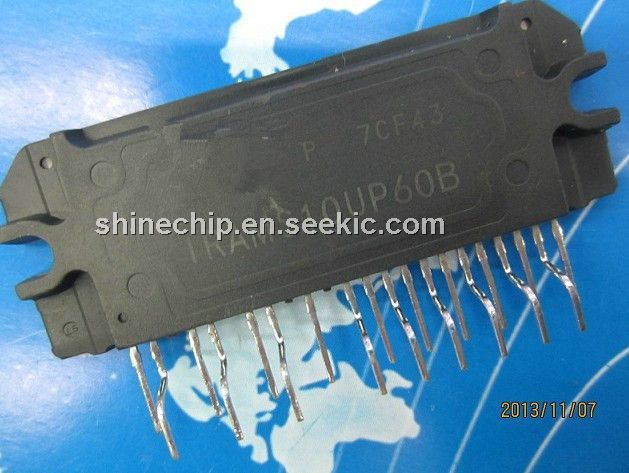

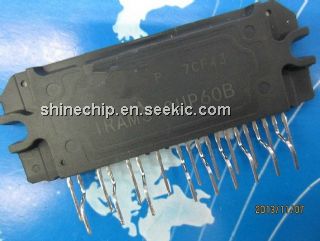

PART NO. IRAMS10UP60B
Product Training Modules IRAM Product Line Overview
High Voltage Integrated Circuits (HVIC Gate Drivers)
Featured Product Motor Power Stage Protected with Rugged 600 V ICs
PCN Assembly/Origin IRAM Product Factory Relocation 9/Aug/2013

Standard Package

80
Category Discrete Semiconductor Products
Family Power Drivers - Modules
Series iMOTION?
Type IGBT
Configuration 3 Phase
Current 10A
Voltage 600V
Voltage - Isolation 2000Vrms
Package / Case PCB Module
Dynamic Catalog iMotion? IRAMS Series

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRAMS10UP60B
IRAMS10UP60B
International Rectifier
Motor / Motion / Ignition Controllers & Drivers
Data Sheet
0-1: $10.81
1-25: $10.33
25-100: $9.75
100-250: $9.42
IRAMS10UP60B-2
IRAMS10UP60B-2
International Rectifier
Motor / Motion / Ignition Controllers & Drivers
Data Sheet
0-53: $10.74
53-100: $9.40
100-250: $9.07
250-500: $8.77
IRAMS10UP60B-4
IRAMS10UP60B-4
International Rectifier
Motor / Motion / Ignition Controllers & Drivers
Data Sheet
0-53: $10.55
53-100: $9.25
100-250: $8.92
250-500: $8.62
IRAMS10UP60B-3
IRAMS10UP60B-3
International Rectifier
Motor / Motion / Ignition Controllers & Drivers
Data Sheet
0-53: $10.55
53-100: $9.25
100-250: $8.92
250-500: $8.62
