Product Summary
The ACH32C-103-T001 is a 3-terminal Filter(SMD) For Power Line.
Parametrics
ACH32C-103-T001 absolute maximum ratings: (1)Rated voltage: 50 V; (2)Rated current: 6 A; (3)Insulation resistance: 100 MΩ; (4)DC resistance: 2 mΩ; (5)Guaranteed attenuation: -25 dB; (6)Guaranteed frequency bandwidth: 30 MHz to 200 MHz; (7)Operating Temperature: -40℃ ~ 85℃.
Features
ACH32C-103-T001 features: (1)comprise ferrite beads and chip capacitors; (2)handle high current levels; (3)highly effective EMC suppression; (4)entirely ferrite structures; (5)excellent attenuation characteristics; (6)guarantee temperature range: 0℃ to +125℃; (7)Available for reflow soldering.

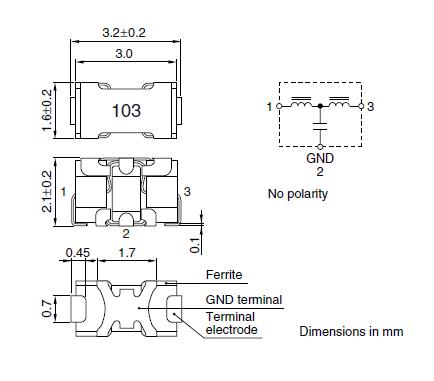

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ACH32C-103-T001 |
TDK |
EMI Filters 30-200MHz 6A 2mohms -25dB |
Data Sheet |
Negotiable |
|
||||||||||||
