Product Summary
The MC68HC908MR16CFU is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCUs). The M68HC08 Family is based on the customer-specified integrated circuit (CSIC) design strategy. All MCUs in the family use the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.
Parametrics
Absolute maximum ratings: (1)Supply voltage: –0.3 to +6.0 V; (2)Input voltage: VSS –0.3 to VDD +0.3 V; (3)Input high voltage: VDD + 4 maximum V; (4)Maximum current per pin excluding VDD and VSS: ±25 mA; (5)Storage temperature: –55 to +150 ℃; (6)Maximum current out of VSS: 100 mA; (7)Maximum current into VDD: 100 mA.
Features
Features: (1)High-performance M68HC08 architecture; (2)Fully upward-compatible object code with M6805, M146805, and M68HC05 Families; (3)8-MHz internal bus frequency; (4)On-chip FLASH memory with in-circuit programming capabilities of FLASH program memory: MC68HC908MR32-32 Kbytes, MC68HC908MR16-16 Kbytes; (5)On-chip programming firmware for use with host personal; (6)computer FLASH data security.

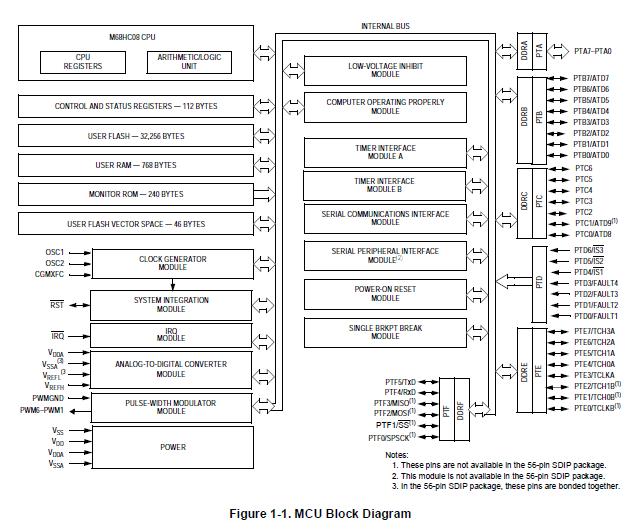

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC68HC908MR16CFU |
|
IC MCU 8MHZ 16K FLASH 64-QFP |
Data Sheet |
Negotiable |
|
||||
