Product Summary

The KBPC3510 is a 35A silicon bridge rectifier.

Parametrics

KBPC3510 absolute maximum ratings: (1)maximum recurrent peak reverse voltage:1000V; (2)maximum RMS voltage: 700V; (3)maximum DC blocking voltage: 1000V; (4)maximum average forward output current: 35A; (5)typical thermal resisitance: 2.5℃/W; (6)operating temperature: -55 to 125℃; (7)storage temperature range: -55 to 150℃.

Features

KBPC3510 features: (1)rating to 1000V PRV; (2)400A surge capability; (3)high efficiency; (4)electrically isolate metal case for maximum heat dissipation.

Diagrams

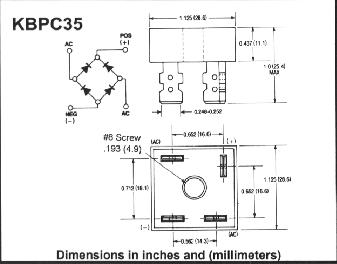

 KBPC3510 dimentions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
KBPC3510
KBPC3510

Other


Data Sheet

Negotiable
KBPC3510FW
KBPC3510FW

Other


Data Sheet

Negotiable
KBPC3510W-G
KBPC3510W-G

Comchip Technology

Bridge Rectifiers DIODE RECT BRIDGE 35A 1Kv

Data Sheet

0-1: $1.69
1-10: $1.27
10-100: $1.25
100-250: $1.20
KBPC3510-G
KBPC3510-G

Comchip Technology

Bridge Rectifiers DIODE RECT BRIDGE 35A 1000V

Data Sheet

0-500: $0.99
500-1000: $0.82
1000-2000: $0.76
2000-5000: $0.73
KBPC3510W
KBPC3510W

Other


Data Sheet

Negotiable
