Product Summary

The SN74ALVCH162244DLR is a 16-bit buffer/driver with 3-state outputs, which is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

Parametrics

Absolute maximum ratings: (1)Supply voltage range: -0.5 to 4.6 V; (2)Input voltage range: -0.5 to 4.6 V; (3)Output voltage range: -0.5 to VCC + 0.5 V; (4)Input clamp current: -50 mA at VI < 0; (5)Output clamp current: -50 mA at VO < 0; (6)Continuous output current: ±50 mA; (7)Continuous current through each VCC or GND: ±100 mA; (8)Package thermal impedance: DGG package: 89, DL package: 94 ℃/W; (9)Storage temperature range: -65 to 150 ℃.

Features

Features: (1)Member of the Texas Instruments Widebus Family; (2)EPIC (Enhanced-Performance Implanted CMOS) Submicron Process; (3)Output Ports Have Equivalent 26-W Series Resistors, So No External Resistors Are Required; (4)ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0).

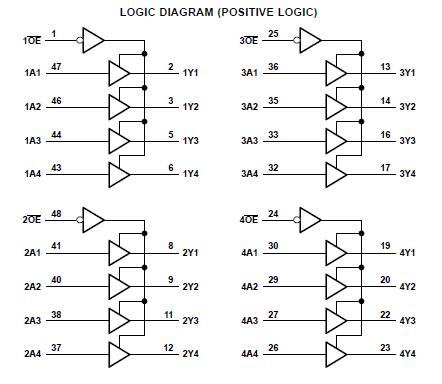

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74ALVCH162244DLR
SN74ALVCH162244DLR

Texas Instruments

Buffers & Line Drivers Tri-State 16-Bit

Data Sheet

0-1: $1.09
1-25: $0.88
25-100: $0.80
100-250: $0.72
