Product Summary

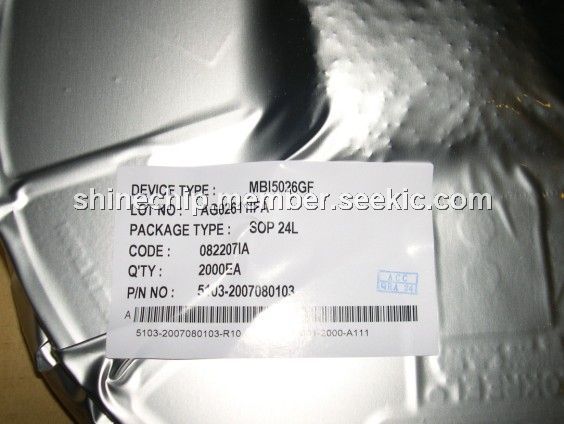

The MBI5026GF is a 16-bit constant current LED sink driver designed for LED displays. The device contains a serial buffer and data latches which convert serial input data into parallel output format. The MBI5026GF provides users with great flexibility and device performance. It guarantees to endure maximum 17V at the output port. The high clock frequency, 25 MHz, also satisfies the system requirements of high volume data transmission.
Parametrics
MBI5026GF maximum ratings: (1)Supply Voltage, VDD: 0 to 7.0 V; (2)Input Voltage, VIN: -0.4 to VDD + 0.4 V; (3)Output Current, IOUT: +90 mA; (4)Output Voltage, VDS: -0.5 to +20.0 V; (5)Clock Frequency, FCLK: 25 MHz; (6)GND Terminal Current, IGND: 1440 mA; (7)Operating Temperature, Topr: -40 to +85 ℃; (8)Storage Temperature, Tstg: -55 to +150 ℃; (9)Power Dissipation(On PCB, Ta=25℃), PD: CN – type: 2.32W; CNS – type: 1.87W; CD – type: 2.51W; CF – type: 2.12W; CP – type: 1.73W; CPA – typ: 1.73W; (10)Thermal Resistance(On PCB, Ta=25℃), Rth(j-a): CN – type: 53.8℃/W; CNS – type: 66.74℃/W; CD – type: 49.81℃/W; CF – type: 59.01℃/W; CP – type: 72.43℃/W; CPA – typ: 72.43℃/W.
Features
MBI5026GF features: (1)16 constant-current output channels; (2)Constant output current invariant to load voltage change; (3)Excellent output current accuracy: between channels: <±3% (max.), and between ICs: <±6% (max.); (4)Output current adjusted through an externaresistor; (5)Constant output current range: 5-90 mA; (6)Fast response of output current, OE (min.): 200 ns; (7)25MHz clock frequency; (8)Schmitt trigger input; (9)5V supply voltage.
Diagrams
 |
