Product Summary

The PIC16F886-I/SP is a 28-Pin, Enhanced Flash-Based 8-Bit CMOS Microcontroller with nanoWatt Technology. The PIC16F886-I/SP is available in 28-pin PDIP, SOIC, SSOP and QFN packages.

Parametrics

PIC16F886-I/SP absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA, PORTB and PORTE (combined): 200 mA; (14)Maximum current sourced by PORTA, PORTB and PORTE (combined): 200 mA; (15)Maximum current sunk by PORTC and PORTD (combined): 200 mA; (16)Maximum current sourced by PORTC and PORTD (combined): 200 mA.

Features

PIC16F886-I/SP features: (1)Program Memory Size: 14KB (8K × 14); (2)RAM Size: 368 × 8; (3)Number of I /O: 24; (4)Package / Case: 28-DIP (0.300 inch, 7.62mm); (5)Speed: 20MHz; (6)Oscillator Type: Internal; (7)Packaging: Tube; (8)Program Memory Type: FLASH; (9)EEPROM Size: 256 × 8; (10)Core Processor: PIC; (11)Data Converters A/D: 11×10b; (12)Core Size: 8-Bit; (13)Operating Temperature: -40 ~ 85℃; (14)Peripherals: Brown-out Detect/Reset, POR, PWM, WDT; (15)Voltage - Supply (Vcc/Vdd): 2 V ~ 5.5 V; (16)Lead Free Status: Lead Free; (17)RoHS Status: RoHS Compliant.

Diagrams

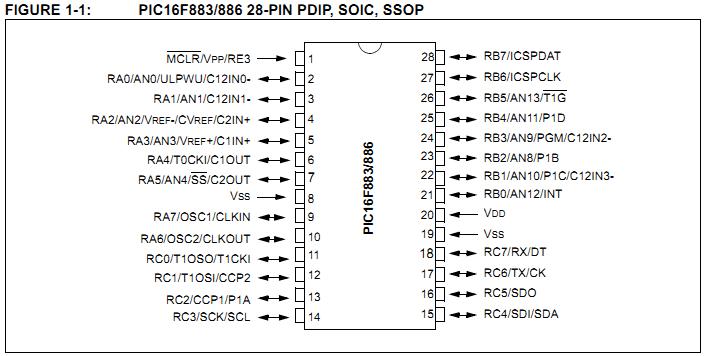

PIC16F886-I/SP pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F886-I/SP
PIC16F886-I/SP

Microchip Technology

8-bit Microcontrollers (MCU) 14KB Flash 368 RAM 25 I/O

Data Sheet

0-1: $1.54
1-10: $1.23
10-25: $1.20
25-100: $1.16
