Product Summary
The RC0805JR-0756KL is a Thick Film Chip Resistor. The RC0805JR-0756KL is for general purpose applications, for laptop and notebook computer, memory module, digital camera and telecommunication equipment.
Parametrics
RC0805JR-0756KL electrical characteristics: (1)Operating Temperature Range: –55 ℃ to +155 ℃; (2)Maximum Working Voltage: 150 V; (3)Maximum Overload Voltage: 300 V; (4)Dielectric Withstanding Voltage: 300 V; (5)Resistance Range: 1 Ω to 22 MΩ at 5% (E24); 1 Ω to 10 MΩ at 1% (E24/E96); Zero Ohm Jumper < 0.05 Ω; (6)Temperature Coefficient: ±200 ppm/℃ at 1 Ω ≤ R ≤ 10 Ω; ±200 ppm/℃ at 10 MΩ < R ≤ 22 MΩ; ±100 ppm/℃ at 10 Ω < R ≤ 10 MΩ; (7)Jumper Criteria: Rated Current: 2 A; Maximum Current: 5 A.
Features
RC0805JR-0756KL features: (1)Small and light weight; (2)Excellent heat resistance and moisture resistance; (3)Suitable size and packaging for surface mount assembly; (4)RoHS Compliant.

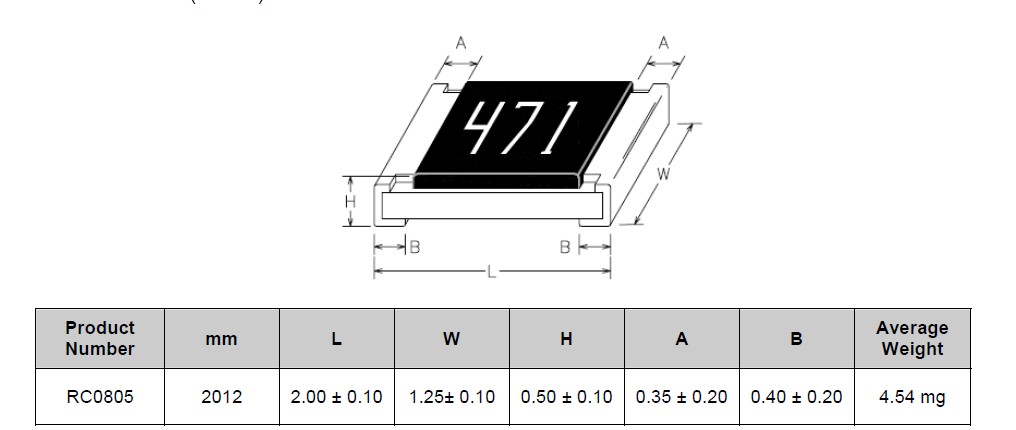

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RC0805JR-0756KL |
Yageo |
Thick Film Resistors - SMD 56K OHM 5% |
Data Sheet |
|
|
||||||||||||||
