Product Summary

The microSMD005F-2 is the PolySwitch device which is the preferred circuit protection method for computer, consumer, multimedia, portable, and automotive electronics applications.

Parametrics

microSMD005F-2 absolute maximum ratings: (1)Temperature min. (TsMIN): 100℃, 150℃; (2)Temperature max. (TsMAX): 150℃, 200℃; (3)Time: 60-120 seconds, 60-180 seconds; (4)Temperature (TL): 183℃, 217℃; (5)Time (tL): 30-70 seconds, 30-70 seconds; (6)Ramp down rate: 6℃/second max; (7)Time 25℃ to peak temperature: 6 minutes max, 8 minutes max.

Features

microSMD005F-2 features: (1)RoHS compliant; (2)Broadest range of resettable devices available in the industry; (3)Current ratings from 0.05 to 3A; (4)Voltage ratings from 6V computer and electronic applications to 60V telecom applications; (5)Agency recognition: UL, CSA, TuV; (6)Small footprint; (7)Fast time-to-trip; (8)Low resistance.

Diagrams

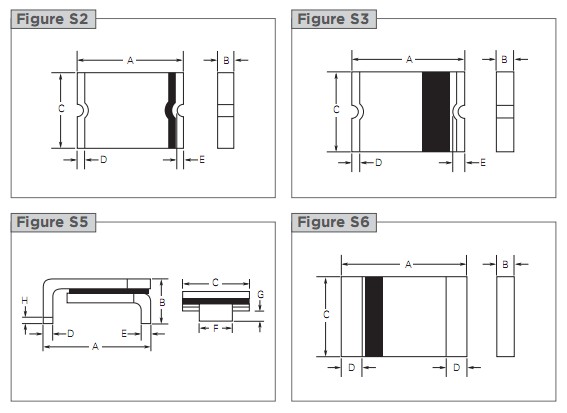

microSMD005F-2 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MICROSMD005F-2
MICROSMD005F-2

TE Connectivity / Raychem

PTC Resettable Fuses .05A 30V 10A IMAX

Data Sheet

0-1: $0.21
1-10: $0.21
10-100: $0.20
100-500: $0.17
