Product Summary

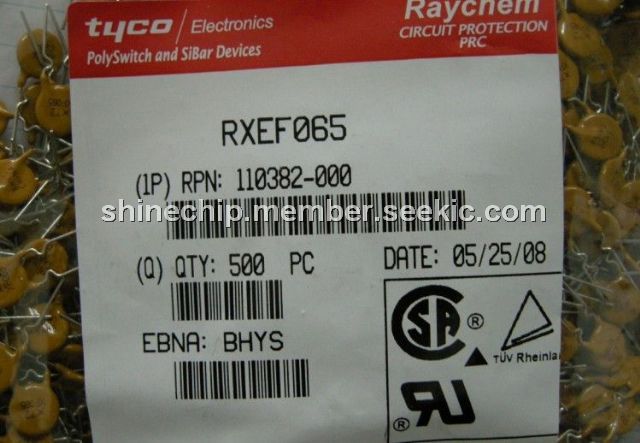

The RXEF065 is a PolySwitch Resettable Device. The applications of the RXEF065: Satellite video receivers, Industrial controls, Transformers, Computer motherboards, Modems, PolySwitch Resettable Devices, Radial-leaded Devices, Benefits Features, USB hub, ports and peripherals, IEEE1394 ports, CD-ROMs, Game machines, Battery packs, Printers.
Parametrics
RXEF065 absolute maximum ratings: (1)Lead material: Tin-plated copper, 0.52mm2 (20AWG), 0.81mm (0.032in.); (2)Soldering characteristics: Solderability per ANSI/J-STD-002 Category 3; (3)Solder heat withstand: per IEC-STD 68-2-20, Test Tb, Method 1A, Condition B, can withstand: 10 seconds at 260℃ ± 5℃; (4)Insulating material: Cured, flame-retardant epoxy polymer; meets UL 94V-0; (5)Operation temperature: -40℃ to 85℃.
Features
RXEF065 features: (1)RoHS compliant; (2)Broadest range of radial-leaded resettable devices available in the industry; (3)Current ratings from 50mA to 15A; (4)Voltage ratings from 6V (computer and electronic applications) to 99V; (5)Agency recognition : UL, CSA, TUV; (6)Fast time-to-trip; (7)Low resistance.

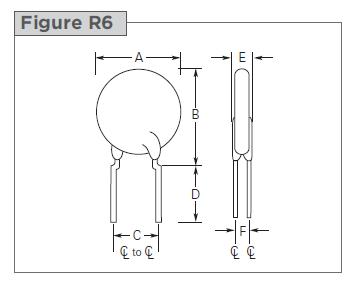

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RXEF065 |
TE Connectivity / Raychem |
PTC Resettable Fuses Radial Lead .65A 72V 40A Imax |
Data Sheet |
|
|
||||||||||||
 |
RXEF065-1 |
Raychem/Tyco Electronics |
POLYSWITCH PTC RESET 0.65A HOLD |
Data Sheet |
Negotiable |
|
||||||||||||
|
RXEF065S |
TE Connectivity / Raychem |
PTC Resettable Fuses Radial Lead .65A 72V 40A Imax |
Data Sheet |
|
|
||||||||||||
|
RXEF065-2 |
TE Connectivity / Raychem |
PTC Resettable Fuses Radial Lead .65A 72V 40A Imax |
Data Sheet |
|
|
||||||||||||
|
RXEF065S-1 |
TE Connectivity / Raychem |
PTC Resettable Fuses Radial Lead .65A 72V 40A Imax |
Data Sheet |
|
|
||||||||||||
|
RXEF065-AP |
TE Connectivity / Raychem |
PTC Resettable Fuses - |
Data Sheet |
|
|
||||||||||||
