Product Summary
The MAX232ACPE+ line driver/receiver is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available.
Parametrics
Absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)Input Voltages: TIN: -0.3V to (VCC - 0.3V), RIN: ±30V, RIN: ±25V, TOUT: ±15V, TOUT: ±13.2V; (3)Output Voltages TOUT: ±15V, ROUT: -0.3V to (VCC + 0.3V); (4)Driver/Receiver Output Short Circuited to GND: Continuous; (5)Continuous Power Dissipation (TA = +70℃): 16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW, 18-Pin Plastic DIP (derate 11.11mW/℃ above +70℃): 889mW; (6)Operating Temperature Ranges: 0℃ to +70℃; (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.
Features
Features: (1)Operate from Single +5V Power Supply (+5V and +12V); (2)Low-Power Receive Mode in Shutdown; (3)Meet All EIA/TIA-232E and V.28 Specifications; (4)Multiple Drivers and Receivers; (5)3-State Driver and Receiver Outputs; (6)Open-Line Detection.

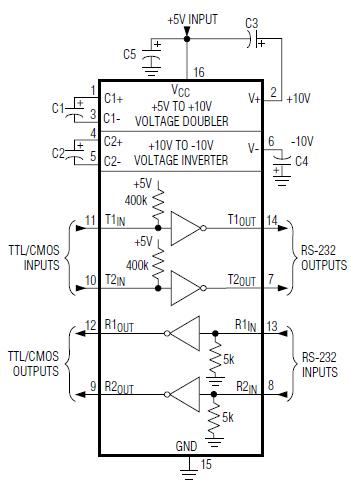

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX232ACPE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MAX20 |
|
MAX CLIP |
Data Sheet |
|
|
||||||||||||
|
MAX200 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX2003A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX2003AC/D |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX2003ACPE |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX2003ACSE |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
