Product Summary

The TCM0806G-900-2P-T200 is an ultra-compact common mode filter for High-speed Differential Signal Line. The TCM0806G-900-2P-T200 is in the smallest class in the industry.

Parametrics

TCM0806G-900-2P-T200 absolute maximum ratings: (1)Common Mode Impedance: 90 Ohm; (2)Common Mode Impedance Tolerance: -20 % to 20 %; (3)Frequency of Common Mode Impedance: 100 M Hz; (4)Rated Voltage Max: 10 V; (5)Rated Current Max: 0.1 A.

Features

TCM0806G-900-2P-T200 features: (1)providing wide bandwidth (cutoff frequency: 3GHz) for differential mode; (2)almost no effect for highspeed differential signals; (3)suppress the radiated emission; (4)no lead and supports lead-free soldering.

Diagrams

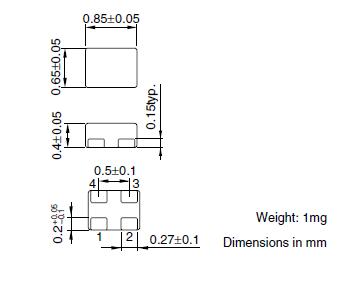

TCM0806G-900-2P-T200 package dimensions
