Product Summary

The M5M465405DJ-5 is a 16777216-word by 4-bit dynamic RAM, which is fabricated with the high performance CMOS process, and are suitable for large-capacity memory systems with high speed and low power dissipation.

Parametrics

Absolute maximum ratings: (1)Supply voltage: -0.5 to 4.6 V; (2)Input voltage: -0.5 to 4.6 V; (3)Output voltage: -0.5 to 4.6 V; (4)Output current: 50 mA; (5)Power dissipation: 1000 mW; (6)Operating temperature: 0 to 70℃; (7)Storage temperature: -65 to 150℃.

Features

Features: (1)Standard 32 pin SOJ, 32 pin TSOP; (2)Single 3.3 ± 0.3V supply; (3)Low stand-by power dissipation: 1.8mW (Max) LVCMOS input level; (4)Low operating power dissipationz: 360.0mW (Max); (5)Self refresh capability*: Self refresh current 400μA (Max); (6)EDO mode , Read-modify-write, CAS before RAS refresh, Hidden refresh capabilities Early-write mode , OE and W to control output buffer impedance; (7)All inputs, outputs LVTTL compatible and low capacitance :Applicable to self refresh version.

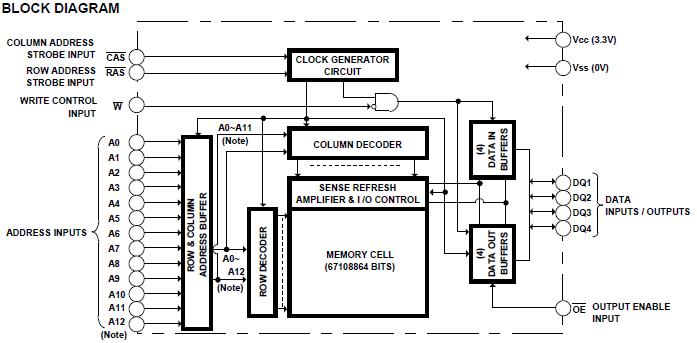

Diagrams
