Product Summary

The 74LV273DB is a low-voltage Si-gate CMOS device and is pin and function compatible with the 74HC/HCT273. The 74LV273DB has eight edge-triggered , D-type flip-flops with individual D inputs and Q outputs. The common clock (CP) and master reset (MR) inputs load and reset (clear) all flip-flops simultaneously. The state of each D input, one set-up time before the LOW-to-HIGH clock transition, is transferred to the corresponding output (Qn) of the flip-flop. All outputs will be forced LOW independently of clock or data inputs by a LOW voltage level on the MR input. The 74LV273DB is useful for applications where the true output only is required and the clock and master reset are common to all storage elements.

Parametrics

74LV273DB absolute maximum ratings: (1)VCC DC supply voltage: –0.5 to +7.0 V; (2)±IIK DC input diode current VI < –0.5 or VI > VCC + 0.5V: 20 mA; (3)±IOK DC output diode current VO < –0.5 or VO > VCC + 0.5V: 50 mA; (4)±IO DC output source or sink current – standard outputs –0.5V < VO < VCC + 0.5V: 25 mA; (5)±ICC DC VCC or GND current for types with –standard outputs: 50 mA; (6)Tstg Storage temperature range: –65 to +150 ℃; (7)PTOT Power dissipation per package: 750mW.

Features

74LV273DB features: (1)Wide operating voltage: 1.0 to 5.5V; (2)Optimized for Low Voltage applications: 1.0 to 3.6V; (3)Accepts TTL input levels between VCC = 2.7V and VCC = 3.6V; (4)Typical VOLP (output ground bounce)0.8V @ VCC = 3.3V, Tamb = 25℃; (5)Typical VOHV (output VOH undershoot)2V @ VCC = 3.3V, Tamb = 25℃; (6)Ideal buffer for MOS microprocessor or memory; (7)Common clock and master reset; (8)Output capability: standard; (9)ICC category: MSI.

Diagrams

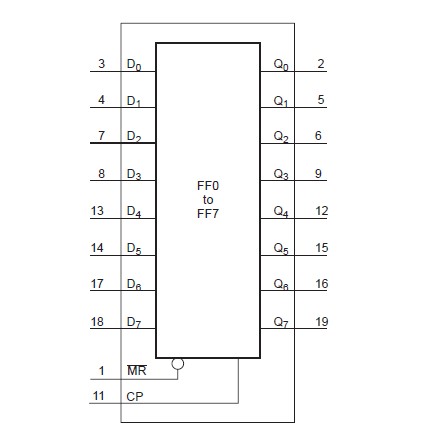

74LV273DB pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74LV273DB
74LV273DB

NXP Semiconductors

Flip Flops 3.3V D-TYPE W/RESET POS

Data Sheet

Negotiable
74LV273DB,112
74LV273DB,112

NXP Semiconductors

Flip Flops 3.3V D-TYPE W/RESET

Data Sheet

0-1: $0.31
1-25: $0.27
25-100: $0.23
100-250: $0.20
74LV273DB,118
74LV273DB,118

NXP Semiconductors

Flip Flops 3.3V D-TYPE W/RESET

Data Sheet

0-1: $0.31
1-25: $0.27
25-100: $0.23
100-250: $0.20
