Product Summary
The ISSI IS62C256AL-45ULI is a low power, 32,768 word by 8-bit CMOS static RAM. It is fabricated using ISSI’s high-performance, low power CMOS technology. When CE is HIGH (deselected), the IS62C256AL-45ULI assumes a standby mode at which the power dissipation can be reduced down to 150 μW (typical) at CMOS input levels. Easy memory expansion is provided by using an active LOW Chip Select (CE) input and an active LOW Output Enable (OE) input. The active LOW Write Enable (WE) of IS62C256AL-45ULI controls both writing and reading of the memory.
Parametrics
IS62C256AL-45ULI absolute maximum ratings: (1)Terminal Voltage with Respect to GND: –0.5 to +7.0 V; (2)Storage Temperature: –65 to +150 ℃; (3)Power Dissipation: 0.5 W; (4)DC Output Current (LOW): 20 mA.
Features
IS62C256AL-45ULI features: (1)Access time: 25 ns, 45 ns; (2)Low active power: 200 mW (typical); (3)Low standby power: 150 μW (typical) CMOS standby, 15 mW (typical) operating; (4)Fully static operation: no clock or refresh required; (5)TTL compatible inputs and outputs; (6)Single 5V power supply; (7)Lead-free available; (8)Industrial and Automotive temperatures available.

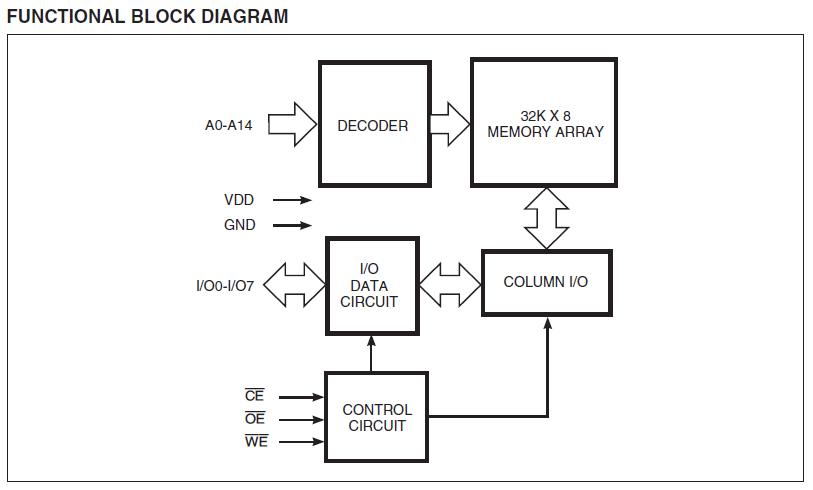

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IS62C256AL-45ULI |
ISSI |
SRAM 256K 32K x 8 45ns 5v Async SRAM 5v |
Data Sheet |
|
|
||||||||||||
|
IS62C256AL-45ULI-TR |
ISSI |
SRAM 256K 32K x 8 45ns 5v Async SRAM 5v |
Data Sheet |
|
|
||||||||||||
